A camshaft is a shaft to which a cam is fastened or of which a cam forms an integral part.[1]
History[]
The camshaft was first described in Iraq (Mesopotamia) by Al-Jazari in 1206. He employed it as part of his automata, water-raising machines, and water clocks such as the castle clock.[2] The cam and camshaft later appeared in European mechanisms from at least the 14th century,[3] or possibly earlier.[4]
Uses[]
In internal combustion engines with pistons, the camshaft is used to operate poppet valves. It then consists of a cylindrical rod running the length of the cylinder bank with a number of oblong lobes protruding from it, one for each valve. The cams force the valves open by pressing on the valve, or on some intermediate mechanism as they rotate.
Material[]
Camshafts can be made out of several different types of material. These include;
Chilled iron castings: this is a good choice for high volume production. A chilled iron camshaft has a resistance against wear because the camshaft lobes have been chilled, generally making them harder. When making chilled iron castings, other elements are added to the iron before casting to make the material more suitable for its application.
Billet Steel: When a high quality camshaft is required, engine builders and camshaft manufacturers choose to make the camshaft from steel billet. This method is also used for low volume production. This is a much more time consuming process, and is generally more expensive than other methods. However the finished product is far superior. When making the camshaft, cnc lathes, cnc milling machines and cnc camshaft grinders will be used. Different types of steel bar can be used. One example is EN40b. When manufacturing a camshaft from EN40b, the camshaft will also be heat treated. the method of heat treatment is gas nitriding, which changes the micro-structure of the material. It gives a surface hardness of 55-62 on the HRC. These types of camshafts can be used in high performance engines.
Timing in internal combustion engines[]
The relationship between the rotation of the camshaft and the rotation of the crankshaft is of critical importance. Since the valves control the flow of air/fuel mixture intake and exhaust gases, they must be opened and closed at the appropriate time during the stroke of the piston. For this reason, the camshaft is connected to the crankshaft either directly, via a gear mechanism, or indirectly via a belt or chain called a timing belt or timing chain. In some designs the camshaft also drives the distributor and the oil and fuel pumps. Also on early fuel injection systems, cams on the camshaft would operate the fuel injectors.
In a two-stroke engine that uses a camshaft, each valve is opened once for each rotation of the crankshaft; in these engines, the camshaft rotates at the same rate as the crankshaft. In a four-stroke engine, the valves are opened only half as often; thus, two full rotations of the crankshaft occur for each rotation of the camshaft.
The timing of the camshaft can be advanced to produce better low end torque or it can be retarded to produce better high end torque.
Duration[]
Duration can often be confusing because manufacturers may select any lift point to advertise a camshaft's duration and sometimes will manipulate these numbers. The power and idle characteristics of a camshaft rated at .006" will be much different than one rated the same at .002". Whenever duration is quoted, be sure to note the lift at which it is given.
Many performance engine builders gauge a race profile's aggressiveness by looking at the duration at .020", .050" and .200". The .020" number determines how responsive the motor will be and how much low end torque the motor will make. The .050" number is used to estimate where peak power will occur, and the .200" number gives an estimate of the power potential.
In general, duration determines how many crankshaft degrees a camshaft maintains more than a given tappet lift.
Camshaft position[]
Depending on the location of the camshaft, the cams operate the valves either directly or through a linkage of pushrods and rockers. Direct operation involves a simpler mechanism and leads to fewer failures, but requires the camshaft to be positioned at the top of the cylinders. In the past when engines were not as reliable as today this was seen as too much bother, but in modern gasoline engines the overhead cam system, where the camshaft is on top of the cylinder head, is quite common. Some engines use two camshafts each for the intake and exhaust valves; such an arrangement is known as a double or dual overhead cam (DOHC), thus, a V engine may have four camshafts.
Maintenance[]
The rockers or cam followers sometimes incorporate a mechanism to adjust and set the valve play through manual adjustment, but most modern auto engines have hydraulic lifters, eliminating the need to adjust the valve lash at regular intervals as the valvetrain wears, and in particular the valves and valve seats in the combustion chamber.
Sliding friction between the surface of the cam and the cam follower which rides upon it is considerable. In order to reduce wear at this point, the cam and follower are both surface hardened, and modern lubricant motor oils contain additives specifically to reduce sliding friction. The lobes of the camshaft are usually slightly tapered, causing the cam followers or valve lifters to rotate slightly with each depression, and helping to distribute wear on the parts. The surfaces of the cam and follower are designed to "wear in" together, and therefore when either is replaced, the other should be as well to prevent excessive rapid wear. In some engines, the flat contact surfaces are replaced with rollers, which eliminate the sliding friction and wear but adds mass to the valvetrain.
Alternatives[]
In addition to mechanical friction, considerable force is required to overcome the valve springs used to close the engine's valves. This can amount to an estimated 25% of an engine's total output at idle, reducing overall efficiency. Some approaches to reclaiming this "wasted" energy include:
- Springless valves, like the desmodromic system employed today by Ducati
- Camless valvetrains using solenoids or magnetic systems have long been investigated by BMW and Fiat, and are currently being prototyped by Valeo and Ricardo
- The Wankel engine, a rotary engine which uses neither pistons nor valves, best known for being used by Mazda in the RX-7 and RX-8 sports cars.
See also[]
- Sleeve valve
- Cylinder head porting
- Crankshaft
Gallery[]

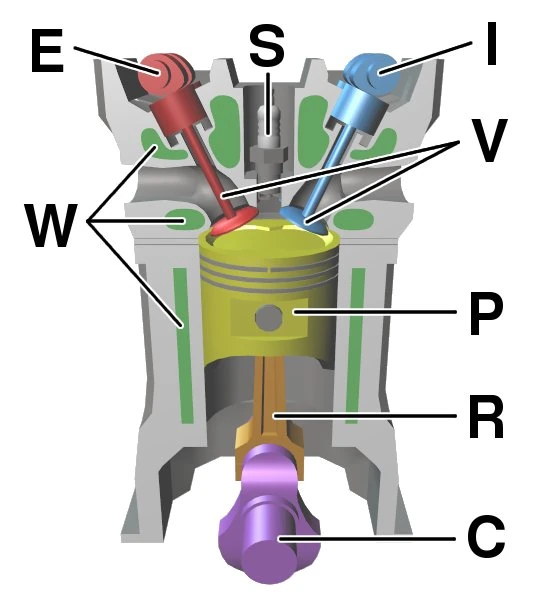

Components of a typical, four stroke cycle, DOHC piston engine. (E) Exhaust camshaft, (I) Intake camshaft, (S) Spark plug, (V) Valves, (P) Piston, (R) Connecting rod, (C) Crankshaft, (W) Water jacket for coolant flow. | |

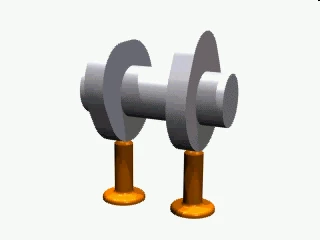

Double overhead cams control the opening and closing of a cylinder's valves.
| |

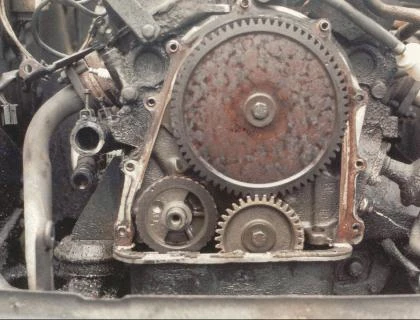

Valve timing gears on a Ford Taurus V6 engine — the small gear is on the crankshaft, the larger gear is on the camshaft. The gear ratio causes the camshaft to run at half the RPM of the crankshaft. |
